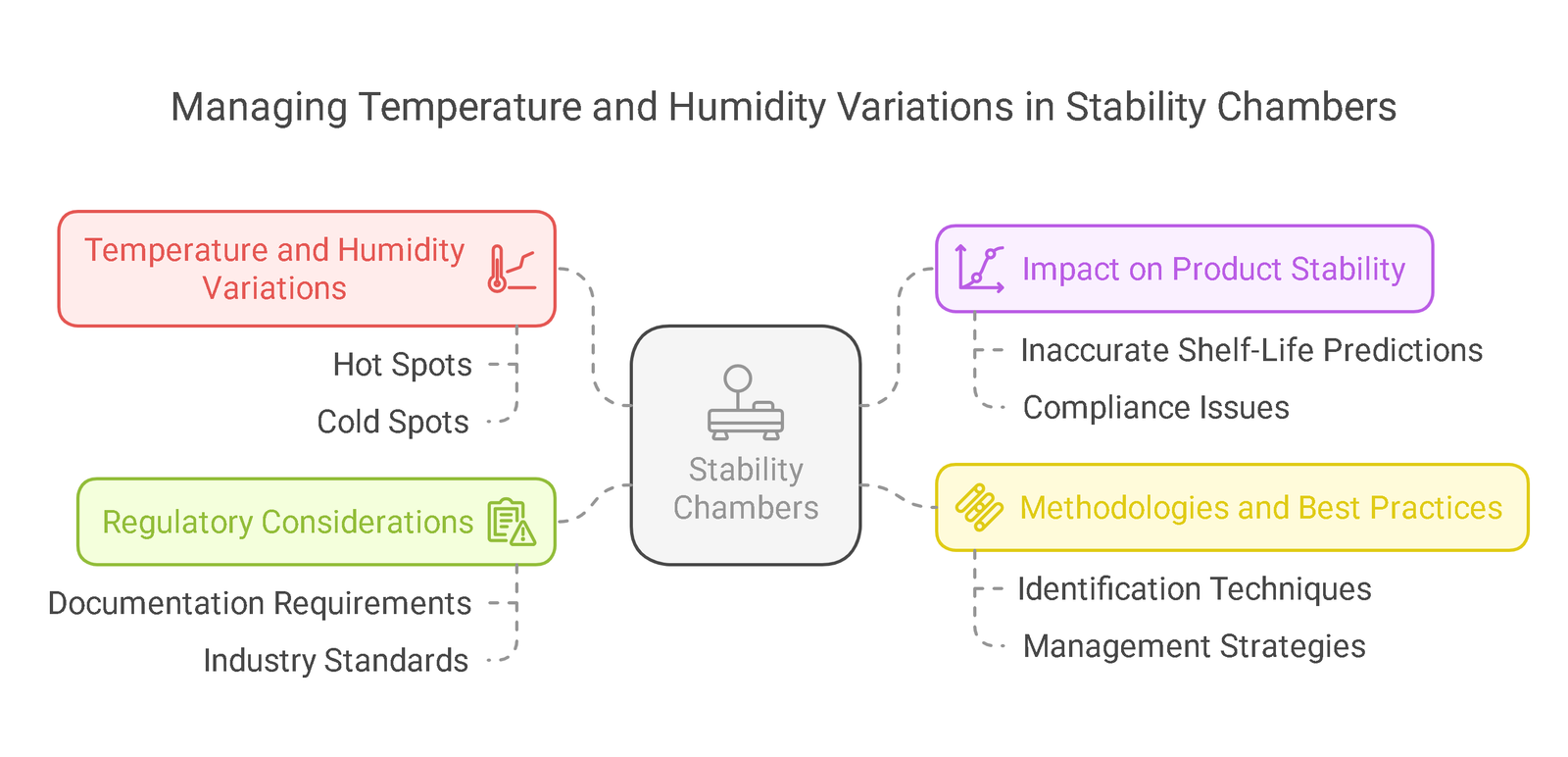

Stability chambers are essential instruments in pharmaceutical, biotechnology, and consumer product industries, providing controlled environments for testing product stability over time. A critical aspect of maintaining these controlled environments involves the identification and management of temperature and humidity variations within the chamber, commonly known as hot and cold spots. These variations can significantly impact product stability studies, potentially leading to inaccurate shelf-life predictions and compliance issues. This comprehensive guide explores the methodologies, best practices, and regulatory considerations for identifying and managing hot and cold spots in stability chambers.
Understanding Stability Chambers and Their Critical Role
Stability chambers are specialized environmental enclosures designed to maintain precise temperature and humidity conditions for product testing and validation. These chambers allow manufacturers to predict how products will behave under various storage conditions, supporting shelf-life determinations and ensuring product safety throughout their lifecycle. According to regulatory guidelines, stability chambers must maintain temperature within ±2°C and relative humidity within ±5% to comply with standards set by organizations such as the Food and Drug Administration (FDA), the International Council for Harmonization (ICH), and the World Health Organization (WHO).
The reliability of stability testing directly influences product quality assessments, regulatory approvals, and ultimately patient safety. Advanced stability chambers like the CRS ICH Stability Chamber utilize combined temperature and humidification conditioning systems with supply air ducting spanning the chamber ceiling and return air ducts at floor level to promote uniform air circulation. Such design considerations are fundamental to minimizing the temperature and humidity gradients that create hot and cold spots.
Modern stability chambers are capable of maintaining various conditions specified by ICH guidelines, including long-term storage (25°C/60%RH, 30°C/65%RH), intermediate testing (30°C/75%RH), and accelerated conditions (40°C/75%RH). The uniformity of these conditions throughout the chamber is essential for obtaining reliable and reproducible stability data, making the identification of hot and cold spots a standard requirement in stability chamber qualification processes.
The Science Behind Hot and Cold Spots in Stability Chambers
Hot and cold spots represent areas within a stability chamber where temperature and humidity deviate significantly from the specified set points. These variations occur due to multiple factors, including airflow patterns, proximity to heating or cooling elements, insulation inconsistencies, door seals, and the influence of external environmental conditions. Even well-designed stability chambers can develop temperature gradients that may compromise the validity of stability studies if left undetected and unmanaged.
The significance of these variations cannot be overstated in pharmaceutical stability testing. Products stored in hot spots may experience accelerated degradation, potentially leading to premature failure or erroneous stability predictions. Conversely, samples positioned in cold spots might show artificially extended stability profiles, creating false confidence in product shelf-life. Either scenario can result in misleading stability data, regulatory compliance issues, and potentially compromised product quality or patient safety.
Temperature mapping studies have revealed that the corners and edges of chambers often exhibit the most significant variations from set points. Additionally, areas near doors, vents, or cooling systems frequently demonstrate temperature fluctuations. Understanding these patterns is essential for optimal product placement within the chamber and for implementing corrective measures to minimize variations where possible. The pharmaceutical industry has established that stability chambers should maintain temperature uniformity within ±2°C and humidity uniformity within ±5% RH throughout the chamber volume to comply with ICH guidelines.
Planning and Preparation for Hot and Cold Spot Determination
The determination of hot and cold spots begins with meticulous planning. Before any physical measurements are taken, a comprehensive mapping protocol must be developed to outline the purpose, methodology, acceptance criteria, and expected outcomes of the mapping study. This protocol serves as both a procedural guide and as documentation for regulatory compliance purposes, ensuring that the mapping exercise is conducted systematically and reproducibly.
A well-designed protocol specifies the number and location of temperature and humidity sensors to be deployed within the chamber. The determination of sensor quantity and placement should be based on the chamber’s volume, configuration, and intended use. Industry practices typically recommend a minimum of nine sensors for small chambers, with additional sensors added as chamber size increases. These sensors should be strategically positioned to capture potential variations in all three dimensions of the chamber space, with particular attention to corners, areas near doors, and other locations susceptible to temperature fluctuations.
When planning a mapping study, consideration must be given to the duration of the measurement period. Most regulatory guidelines suggest a minimum duration of 24 hours for mapping studies, though longer periods (typically 48-72 hours) are often employed to capture any cyclical variations that might occur over multiple days. The frequency of data acquisition is another critical factor, with readings typically taken at intervals of 1-15 minutes to ensure adequate resolution of temperature and humidity profiles throughout the study period.
Equipment selection and calibration represent crucial elements of the planning phase. Data loggers and sensors must be calibrated against traceable standards and should offer accuracy that exceeds the acceptance criteria for the stability chamber itself. For instance, if the chamber must maintain temperature within ±2°C, the measurement system should ideally have an accuracy of ±0.5°C or better. This level of precision ensures that observed variations represent actual chamber conditions rather than measurement errors or instrument limitations.
Executing a Comprehensive Stability Chamber Mapping Study
The execution of a stability chamber mapping study follows a structured methodology designed to provide comprehensive data on temperature and humidity distribution. The process begins with the verification of all measurement equipment, ensuring that data loggers and sensors are properly calibrated and functioning as expected. This verification may include a preliminary test to confirm equipment functionality before the formal mapping study commences, establishing confidence in the measurement system before deploying it throughout the chamber.
Once equipment verification is complete, the chamber should be operated empty to establish baseline conditions. This empty chamber mapping provides valuable information about the inherent temperature and humidity distribution without the influence of product loading. The stability chamber should be set to the desired test conditions and allowed to stabilize before data collection begins. Stability is typically defined as maintaining temperature and humidity within the specified ranges for a minimum of 30 minutes prior to starting the mapping study.
The strategic placement of sensors forms the cornerstone of an effective mapping exercise. Sensors should be positioned in a three-dimensional grid pattern throughout the chamber, with particular attention to corners, areas near doors, vents, and other potential sources of temperature variation. According to standard practices documented in pharmaceutical guidelines, sensors with internal temperature monitoring capabilities are typically placed in layers on all four corners of the chamber and one in the center, while an additional sensor is placed outside the chamber to monitor external conditions.
For humidity mapping, similar principles apply, though humidity sensors are often fewer in number due to their larger size and higher cost. The external logger may also monitor humidity and should be positioned away from heat sources, vents, windows, or other elements that might affect readings. Throughout the mapping period, care must be taken to minimize door openings and other disturbances that could influence the chamber’s environmental conditions and introduce artifacts into the mapping data.
Advanced Data Analysis Techniques for Identifying Critical Variations
The analysis of stability chamber mapping data involves both statistical evaluation and spatial visualization to identify hot and cold spots accurately. The collected data from each sensor is typically compiled into a comprehensive dataset that allows for the calculation of minimum, maximum, and average values for temperature and humidity at each monitoring point. Statistical parameters such as standard deviation and range provide insights into the variability of conditions at each location over time, helping to characterize the stability of the environmental control system.
Mean Kinetic Temperature (MKT) calculation represents a particularly valuable tool in the analysis of temperature mapping data. MKT is a calculated fixed temperature that simulates the non-linear effects of temperature variations on chemical degradation and provides a single derived temperature value that represents the integrated effect of temperature fluctuations over time. This calculation is especially useful for evaluating the impact of temperature excursions in controlled room temperature (CRT) stability chambers where minor fluctuations may occur.
The formula for MKT, originally developed by J.D. Haynes, applies the Arrhenius equation to account for the logarithmic temperature dependency of chemical reactions. When applying MKT to evaluate Controlled Room Temperature (CRT) Stability Chamber excursions, it is recommended to use not less than 30-days of temperature data for the observation period, which aligns with the USP recommendation for calculating MKT in stability applications. This approach provides a more representative assessment of the chamber’s thermal characteristics over an extended period.
Visualization techniques play a crucial role in interpreting mapping data and communicating results effectively. Three-dimensional heat maps or contour plots can illustrate the spatial distribution of temperature and humidity throughout the chamber volume, making it easy to identify hot and cold spots and understand the gradient patterns within the chamber. Software tools specifically designed for stability chamber mapping often provide automated generation of these visualizations, streamlining the analysis process and enhancing the interpretability of complex spatial data.
Regulatory Compliance and Documentation Requirements
Thorough documentation represents a cornerstone of stability chamber mapping and qualification. Regulatory agencies require comprehensive records that demonstrate the controlled environment’s ability to maintain specified conditions reliably. A complete documentation package for stability chamber mapping typically includes several elements that collectively provide evidence of chamber performance and compliance with regulatory standards, forming the foundation for regulatory submissions and inspections.
The documentation begins with the mapping protocol, which outlines the methodology, acceptance criteria, and procedural details for the mapping study. This protocol should be approved before the study commences and serves as the roadmap for the entire mapping process. Following the execution of the mapping study, a detailed report should be prepared that presents the results, analyzes the data, identifies hot and cold spots, and provides conclusions regarding chamber performance relative to predefined acceptance criteria.
Companies specializing in stability chamber validation, such as Parameter, provide document packages that include minimum, maximum, and average statistics, mean kinetic temperature calculations, detailed graphs, test data, deviations, the executed protocol, and test equipment calibration data with NIST-traceable calibration certificates. This level of documentation comprehensively demonstrates the chamber’s performance and compliance with regulatory expectations, providing a defensible record of the mapping exercise for internal quality assurance and external regulatory review.
Handling deviations and excursions constitutes another critical aspect of compliance documentation. A stability chamber Standard Operating Procedure (SOP) must include specific instructions for documenting and investigating temperature or humidity excursions. When conditions deviate from acceptable ranges, a thorough investigation should be conducted to determine the root cause, assess the impact on stored samples, and implement corrective actions to prevent recurrence. This investigative process should be documented in detail, including the rationale for decisions regarding the disposition of affected stability samples.
Strategies for Managing Hot and Cold Spots in Stability Chambers
After hot and cold spots have been identified through comprehensive mapping, implementing effective management strategies becomes essential for maintaining uniform conditions throughout the stability chamber. Several approaches can be employed to minimize variations and ensure consistent environmental control, ranging from simple adjustments to sophisticated technological solutions.
Proper air circulation represents a fundamental factor in temperature and humidity uniformity. Advanced stability chambers utilize sophisticated airflow systems to ensure even distribution of conditioned air throughout the chamber volume. For example, the CRS ICH Stability Chamber features supply air ducting running the entire length of the chamber ceiling with return air ducts at floor level on both sides, creating a circulation pattern that promotes uniformity. Regular maintenance of these air handling systems, including cleaning of filters and inspection of ducts, helps maintain optimal air circulation patterns and prevent the development of hot or cold spots due to restricted airflow.
The physical arrangement of products within the chamber can significantly impact temperature and humidity distribution. Based on mapping results, a loading diagram should be developed that specifies where products can be safely placed to avoid identified hot and cold spots. Maintaining adequate space between samples and ensuring that air can flow freely around them helps prevent the creation of microclimates within the chamber. Overloading chambers represents a common cause of temperature non-uniformity and should be avoided through careful capacity planning and adherence to validated loading patterns.
Continuous monitoring systems provide real-time data on chamber conditions, allowing for prompt identification and correction of developing issues before they become significant enough to affect product stability. Many modern stability chambers incorporate multiple temperature and humidity sensors that continuously monitor conditions at various locations within the chamber. These systems often include alarm capabilities that alert personnel when conditions approach or exceed acceptable limits, enabling timely intervention to maintain proper environmental control throughout stability studies.
Periodic requalification of stability chambers ensures ongoing performance and compliance with specifications. Industry best practices suggest conducting a new temperature mapping study following any significant event that might affect chamber performance, including relocation, seasonal changes (approximately every 6 months), or chamber replacement. Additionally, preventative maintenance schedules should be established based on manufacturer recommendations and historical performance data to address potential issues before they impact chamber uniformity.
Advanced Technologies for Enhanced Stability Chamber Monitoring
The field of stability chamber monitoring continues to evolve, with emerging technologies offering enhanced capabilities for detecting and managing hot and cold spots. These advanced approaches leverage cutting-edge sensor technology, data analytics, and connectivity to provide unprecedented insight into chamber performance and facilitate proactive management of environmental conditions.
Wireless monitoring systems represent a significant advancement in stability chamber mapping and surveillance. These systems utilize wireless sensors that can be positioned throughout the chamber without complex wiring arrangements, allowing for greater flexibility in sensor placement and facilitating more comprehensive mapping with larger numbers of monitoring points. Wireless technology enables continuous data collection without the physical limitations of wired sensors, providing more detailed spatial resolution when mapping temperature and humidity distributions within stability chambers.
Computational Fluid Dynamics (CFD) modeling has become an invaluable tool for understanding and optimizing airflow patterns within stability chambers. By creating detailed computer simulations of air movement, temperature distribution, and humidity patterns, engineers can identify potential hot and cold spots before they become problematic in actual operation. CFD analysis can guide modifications to chamber design, airflow systems, or product placement strategies to enhance uniformity without extensive physical testing, saving time and resources in the optimization process.
Artificial intelligence and machine learning algorithms are increasingly being applied to stability chamber monitoring systems. These technologies can analyze vast amounts of historical performance data to identify patterns and predict potential deviations before they occur. By recognizing subtle changes in chamber behavior that might precede significant excursions, predictive algorithms enable proactive maintenance and adjustments rather than reactive responses to problems after they develop, enhancing the reliability of stability testing environments.
Risk-based approaches to stability chamber management focus resources on the most critical aspects of temperature and humidity control based on product requirements and regulatory considerations. By conducting formal risk assessments that consider factors such as product sensitivity, regulatory requirements, and historical chamber performance, organizations can develop targeted monitoring and maintenance strategies tailored to their specific needs. This approach might include more frequent mapping of high-risk chambers, continuous monitoring of critical areas identified during mapping, or enhanced alarm systems for chambers housing particularly sensitive products.
Best Practices for Ongoing Hot and Cold Spot Management
Maintaining consistent environmental conditions in stability chambers requires ongoing attention and adherence to established best practices. Beyond the initial mapping and qualification activities, several key strategies can help ensure that hot and cold spots remain under control throughout the operational life of the chamber, supporting reliable stability studies and regulatory compliance.
Regular preventative maintenance represents a fundamental aspect of hot and cold spot management. Scheduled maintenance activities should include inspection and cleaning of air circulation systems, verification of door seals and gaskets, calibration of control sensors, and examination of heating and cooling components. These routine activities help prevent the development of new hot or cold spots due to mechanical degradation or component failure, maintaining the chamber’s validated performance characteristics over time.
Strategic product placement based on mapping results helps mitigate the impact of any residual temperature or humidity gradients within the chamber. Products particularly sensitive to environmental conditions should be positioned in areas demonstrated to have the most stable and uniform conditions, away from identified hot or cold spots. This approach requires maintaining detailed records of mapping results and developing clear guidelines for laboratory personnel regarding product placement within the chamber to ensure consistency across stability studies.
Continuous environmental monitoring provides real-time insight into chamber performance and enables prompt detection of developing issues. Modern monitoring systems can track temperature and humidity at multiple locations within the chamber, generating alerts when conditions approach or exceed acceptable limits. Some advanced systems incorporate adaptive control algorithms that adjust heating, cooling, and humidification parameters based on feedback from multiple sensors, actively compensating for factors that might otherwise create hot or cold spots within the chamber.
Periodic requalification schedules should be established based on risk assessment and regulatory requirements. While many organizations conduct complete remapping studies annually, more frequent partial assessments might be warranted based on chamber performance history, criticality of stored products, or regulatory expectations. Seasonal requalification (e.g., summer and winter mapping) proves particularly valuable for identifying variations related to external environmental conditions that might influence chamber performance and create seasonal hot or cold spots.
The determination and management of hot and cold spots in stability chambers represent critical components of pharmaceutical quality assurance and regulatory compliance programs. Through systematic mapping, comprehensive analysis, and ongoing monitoring, manufacturers can ensure the reliability of stability studies and the integrity of the data they generate. The identification and control of temperature and humidity variations within stability chambers directly impact product quality assessments, regulatory submissions, and ultimately patient safety.
As regulatory expectations continue to evolve and technology advances, the methodologies for mapping and monitoring stability chambers grow increasingly sophisticated. The integration of wireless sensors, predictive analytics, and adaptive control systems promises to enhance the precision and reliability of stability testing environments. Organizations that embrace these innovations while maintaining rigorous documentation and validation practices position themselves advantageously to meet the challenges of product stability testing in the coming years.
The fundamental principles of stability chamber mapping—careful planning, strategic sensor placement, comprehensive data analysis, and thorough documentation—remain essential regardless of technological advancements. By adhering to these principles and implementing the best practices outlined in this guide, manufacturers can confidently identify and manage hot and cold spots in their stability chambers, ensuring the validity and reliability of their stability programs across product lifecycles and regulatory frameworks.
Ultimately, effective hot and cold spot determination extends beyond regulatory compliance to the broader objective of ensuring product quality and safety throughout the product lifecycle. By understanding and controlling the environmental conditions in which stability testing occurs, manufacturers make more informed decisions about product formulations, packaging configurations, and storage recommendations, benefiting both their business operations and the end users of their products. This comprehensive approach to stability chamber management represents a cornerstone of modern pharmaceutical quality systems and continues to evolve with advances in technology and regulatory science.
